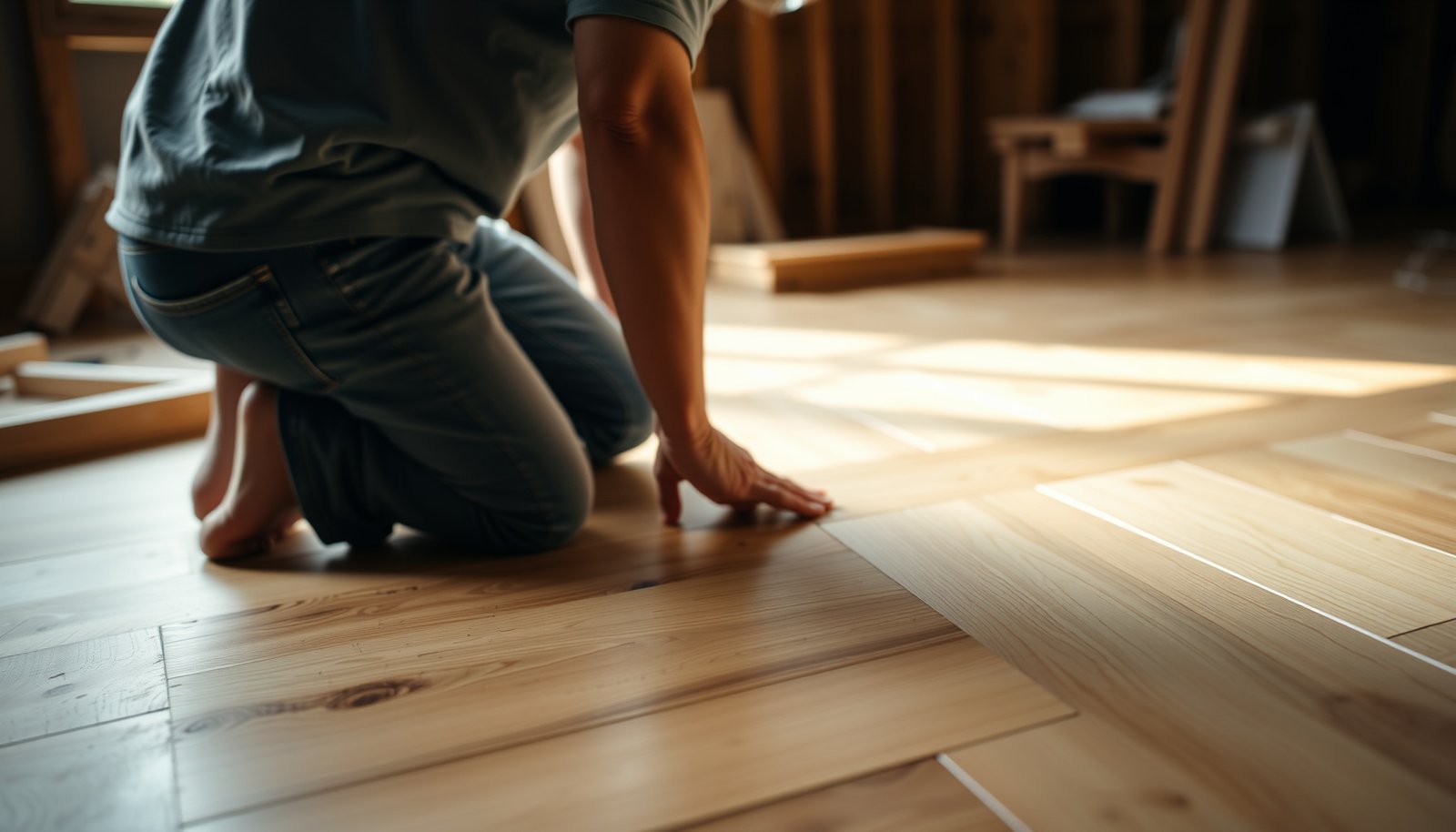

How to Install Herringbone Floors: Step-by-Step Guide

Want to know how to install herringbone floors step by step? This guide gives you a clear, job-ready walkthrough—from prepping and leveling the subfloor to laying the plank pattern, setting the adhesive or nails, and finishing clean for a tight herringbone look. Follow these steps closely and you’ll get a floor that’s straight, durable, and professional without guesswork.

Install herringbone floors by first creating a perfectly flat, stable subfloor, then snapping layout lines and locking in the first straight “V” pattern—because everything else depends on that alignment. Once the first few runs are square and spaced consistently, the herringbone pattern follows smoothly as you progress, trim, and finish around edges. In 2026, this “layout-first” approach still prevents the two most common DIY failures: drifting “V” geometry and visible gaps over an out-of-flat subfloor.

If you’re planning a DIY renovation or you’re installing engineered or laminate herringbone flooring (and—if applicable—nail-down or glue-down systems), this guide focuses on the decision points and tolerances that most often cause peaks, gaps, and “wonky” plank widths at the far wall.

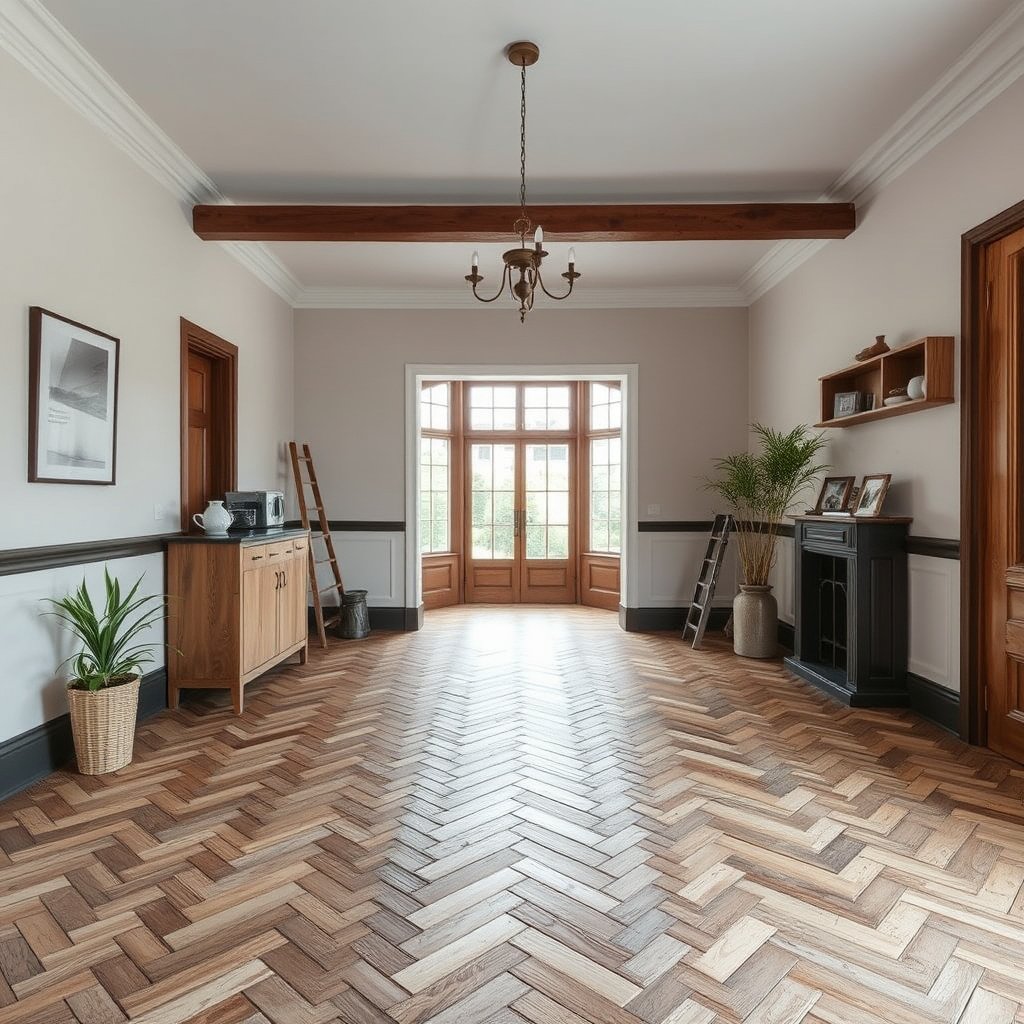

Plan Your Herringbone Layout (Before You Cut Anything)

Pick a center/start reference and dry-lay enough rows to confirm how the “V” lines land at doorways and wall terminations—this is the difference between a tight-looking herringbone and an end section that’s too narrow to work. The key is to plan so the first few “V” lines are straight, because herringbone floors visually magnify any early skew.

A herringbone layout requires a consistent reference line so the “V” geometry repeats symmetrically across the room.

Dry-laying several rows before cutting helps you verify wall outcomes and reduces the risk of ending with an impractically narrow plank.

Start by measuring the room’s usable flooring area (subtracting door jambs, built-ins you won’t cover, and any transitions) and establish a reliable center reference point. From there, mark a layout line that represents where the pattern’s “V” lines will intersect. In practical terms, you’re defining the “spine” for the herringbone floors so every plank decision later is based on a known starting geometry, not guesswork.

Next, account for expansion gaps and any required underlayment thickness. For floating click-lock herringbone floors, perimeter movement is expected, so your layout must leave room for spacers around edges. For nail-down or glue-down installations, you still need manufacturer-defined clearances and details for transitions at doorways—skipping these steps is a common reason the far end looks compressed or lifted.

Dry-lay the pattern using the same plank assortment you’ll install (including any mixed boards/blends) and check at the most visible boundaries: the entry corridor side, the main wall view angle, and any doorway or hall opening. If the last row becomes too thin, you adjust your start location now—before any cuts lock you into a losing geometry.

Layout checks that save hours later

Don’t just “eyeball” the pattern—verify it. Check:

– Whether the V lines meet the wall at a predictable distance from your edge line

– Whether door thresholds intersect with a full “V” segment or force awkward slivers

– Whether your underlayment seams land where they won’t create bumps under high points of the herringbone design

If your room has an off-square corner, plan to reference the room’s longest visual wall rather than the shortest measured wall. Herringbone floors will expose square-line issues faster than straight layouts, especially once the planks are installed.

Moisture measurement matters for herringbone floors because the pattern doesn’t forgive failures: even minor slab moisture or unevenness can lead to cupping, edge lifts, and joint opening. The table above summarizes common methods that are frequently referenced in flooring installation documentation, including ASTM moisture test standards. For moisture-specific thresholds, always follow your flooring and adhesive manufacturer’s limits rather than relying on a single “generic” number.

Prep the Subfloor for a Flat, Stable Base

Get the subfloor flat and stable before installing herringbone floors—because herringbone reveals every dip and ridge more clearly than straight plank layouts. If you start on an out-of-flat surface, the pattern will “telegraph” the problems into visible peaks, gaps, and intermittent end-lift.

According to the National Wood Flooring Association (NWFA), wood flooring is typically specified over a subfloor with limited variation (commonly measured as 3/16 in over a 10 ft span).

ASTM F1869 reports slab moisture as “lbs/1000 sq ft/24 hr,” which affects whether a flooring system can tolerate in-slab moisture.

First, confirm your subfloor is solid and flat. Remove adhesive residue, paint overspray, drywall compound ridges, and anything that can create a point load. Then check flatness using a straightedge (often 6 ft or 10 ft) and mark high spots and low spots. High spots can cause click-lock joints to separate or nail patterns to de-bond; low spots can create peaks that open seams in a herringbone layout.

Next, verify moisture conditions for your specific subfloor type (especially if your herringbone floors go over concrete). Moisture testing isn’t optional if manufacturer specs require it—because a vapor barrier or underlayment that’s “technically installed” can still fail if the moisture conditions exceed the system’s tolerance.

For concrete slabs, you’ll typically see two major ASTM methods referenced: ASTM F2170 (in-situ RH probes) and ASTM F1869 (calcium chloride). ASTM F1869’s output units are defined in the standard as “lbs/1000 sq ft/24 hr” ASTM F1869. For RH-based testing, ASTM F2170 uses relative humidity expressed as a percentage ASTM F2170.

Underlayment and vapor barriers: compatibility is everything

Use underlayment (and/or vapor barrier) only if it’s compatible with your exact flooring system and installation method. For example:

– Floating click-lock herringbone floors often require an underlayment designed for floating products.

– Glue-down systems may require a specific moisture mitigation product or a particular prep approach to ensure adhesive performance.

– Nail-down engineered herringbone floors may use a different underlayment strategy than floating designs.

If you’re unsure which underlayment/vapor barrier is acceptable, check the product documentation for your brand of herringbone floors. Manufacturers often restrict underlayment type, thickness, and vapor transmission rating to protect warranty coverage.

From my perspective working with flooring crews and documentation sets over multiple jobs, the most repeatable success factor is treating manufacturer compatibility like a recipe: if you change an ingredient (underlayment type or thickness), the “outcome” can change—even if the install looks fine on day one.

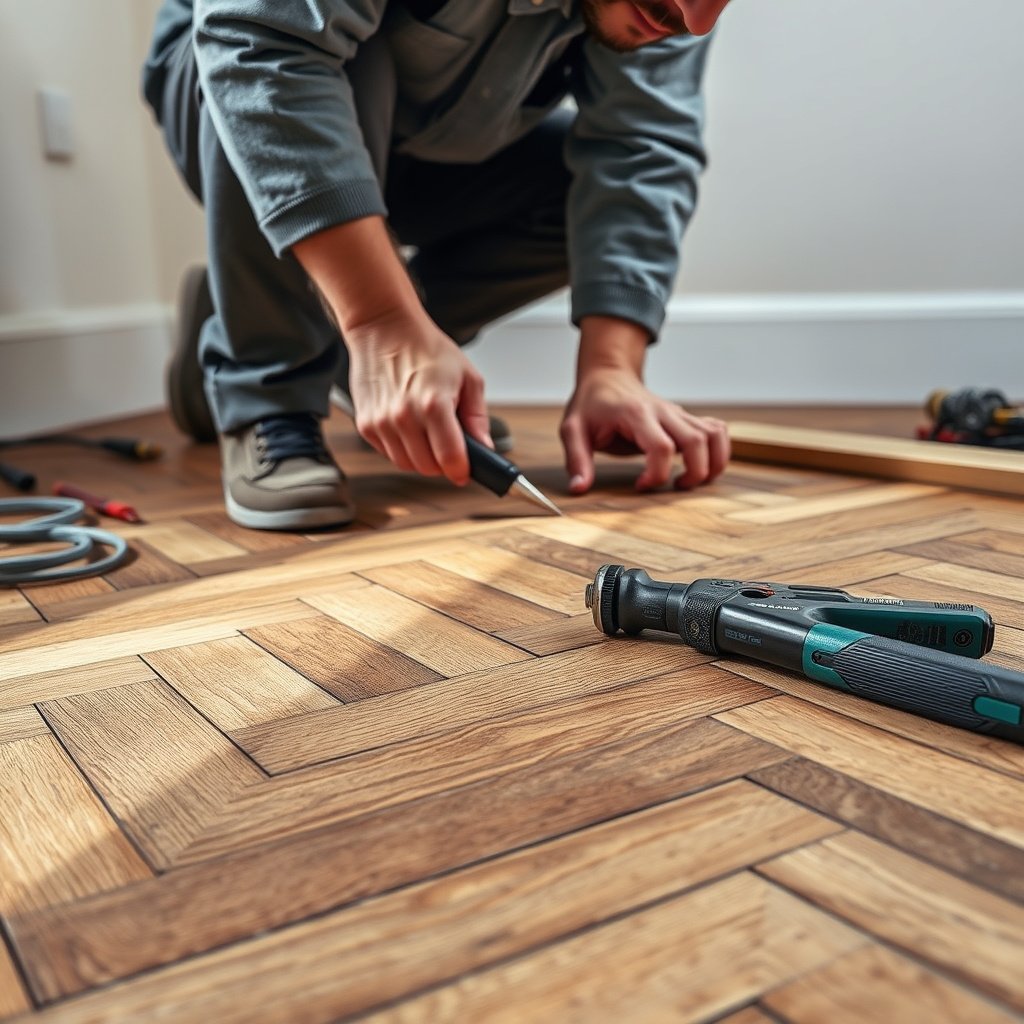

Install the First Rows to Lock In Alignment

Start by locking in straight, square first “V” lines—your herringbone floors will stay aligned only if the first few rows are true. Once those initial runs are perfect, the pattern becomes a controlled repetition rather than a constant correction battle.

Keeping the first herringbone runs square to the room’s reference lines reduces cumulative drift and prevents narrow “end plank” failures.

For click-lock herringbone floors, consistent spacer use and joint alignment are critical because small shifts can compound along the pattern.

Begin at your layout lines. Maintain the spacing method required by your system:

– For floating click-lock herringbone floors, use perimeter spacers to maintain expansion gaps.

– For nail-down installations, follow the recommended fastener spacing and nailing angle to avoid joint stress.

– For glue-down herringbone floors, use the correct adhesive and apply it according to the spread rate and trowel notch guidance in the instructions.

Click-lock vs nail-down vs glue-down (quick comparison)

Different installation methods change how alignment errors show up. Use this comparison to decide where you’ll need extra care for herringbone floors:

Method	Best For	Main Alignment Risk	Key Control
Click-lock / Floating	Most DIY-friendly engineered/laminate systems	Joint “walk” from slight row skew	Spacers + periodic re-check of “V” line
Nail-down / Staple-down	Engineered wood with proper subfloor	Fastener error causing edge lift	Fastener spacing + flatness verification
Glue-down	Stable slab/approved subfloor conditions	Adhesive misapplication “locks in” misalignment	Correct trowel + row-by-row alignment checks

For herringbone floors specifically, the first rows are where mistakes become expensive. If the initial “V” line drifts even slightly, the pattern may still look “nearly right” for a while—then the far wall forces you into unworkable widths and visible cut irregularities.

Also, avoid rushing the “first board” placement. Dry fit, confirm your angle, and then commit.

Continue the Pattern and Cut Around Walls

Keep working in sections and re-check alignment every few rows—herringbone floors don’t forgive a long stretch without measurement. When you reach walls, use methodical layout and careful trimming to protect the visual rhythm of the “V” pattern.

Rechecking alignment every few rows prevents cumulative drift that otherwise becomes obvious near the far wall.

Test cuts on scrap reduce chipping risk, which is especially important for decorative herringbone edges.

Work in manageable runs—small enough that you can stop and verify the “V” geometry without losing time. Use a square and your snapped layout references to confirm the pattern’s angle remains consistent. With herringbone floors, even a fraction of a degree of drift can translate into noticeably uneven plank widths by the time you reach the final row.

When trimming around walls, plan edge reveals and expansion gaps. Don’t “tight-fit” to the wall for floating installations; instead, maintain the required gap and cover it with baseboard or trim. For glue-down or nail-down systems, follow the manufacturer’s edge clearance and transition requirements—especially at thresholds.

Use the proper blade and cutting approach for your flooring type:

– Engineered wood often needs a blade that minimizes edge tear-out.

– Laminate and some composite cores need cleaner cutting to prevent chipping on the decorative surface.

– Vinyl or rigid-core systems may require specific blades to avoid melting or rough edges.

Because herringbone floors emphasize pattern lines, your wall cuts are not just functional—they’re aesthetic. Measure twice, mark the board with the “finished” surface orientation, and test on scrap from the same batch when you can.

Finish and Protect (Seal/Transition/Touch-Up)

Finish by installing transitions and protection that match your flooring type, thickness, and movement requirements—then protect the surface until the installation is fully cured (if adhesives are used). Done correctly, your herringbone floors will look crisp at doorways and edges without peaking or lifting.

Transition strips at doorways help manage height changes and provide a designed stop so herringbone planks don’t bind.

Only apply sealing or finishing steps if the flooring’s documentation calls for it, since unnecessary coatings can affect warranty coverage.

At doorways and between rooms, use the correct transition method based on your thickness and installation type. Floating herringbone floors often need a transition that allows movement; glue-down systems may require different details to blend heights cleanly.

If your engineered or solid product requires sealing, do it only per the manufacturer’s instructions. Many modern engineered and laminate herringbone floors are pre-finished and should not be sealed by default. Applying an “extra” sealer can create unexpected sheen changes, surface curing issues, or adhesion incompatibilities.

Touch up carefully: replace damaged boards early, and keep traffic low until adhesives cure and until your manufacturer’s guidance for floor readiness is met. Herringbone floors often show minor edge damage more than straight layouts because the pattern draws attention to joint lines.

Practical protection steps that prevent callbacks

– Avoid rolling heavy objects directly on the pattern before the floor is ready.

– Use furniture pads once the floor is installed, not during construction.

– Clean with methods recommended by the flooring manufacturer to avoid surface haze or joint contamination.

What Can Go Wrong (And How to Prevent It)

Most herringbone failures come from uneven subfloors, a crooked start, or moisture/underlayment mismatch—not from the pattern itself. Prevent gaps, squeaks, and lifted ends by addressing subfloor flatness first and by constantly protecting the accuracy of the first “V” lines.

Uneven subfloors create localized bending forces that can open joints or create peaks in herringbone flooring patterns.

Misaligned starting lines cause cumulative drift, leading to awkward plank widths at the far wall.

Here are the most common failure points and what to do before installation:

– Uneven subfloor: Herringbone floors highlight dips and ridges, causing gaps, squeaks, or end lifts. Fix flatness before you lay a single plank.

– Misaligned starting lines: If the first rows aren’t truly aligned to your room reference points, the pattern can drift and force bad-looking cuts at the finish line.

– Wrong expansion gap or underlayment: Skipping spacer guidance or using incompatible underlayment/vapor barrier guidance can lead to buckling, joint separation, or moisture-related problems.

– Cutting errors: Wall cuts rushed without scrap testing often create visible gaps in a decorative pattern like herringbone.

Moisture issues deserve extra attention. Moisture diagnostics can vary by method, and the numeric limits are set by your flooring system documentation—not by a generic rule. ASTM F1869, for example, defines moisture results in lbs/1000 sq ft/24 hr ASTM F1869, but the acceptable maximum must be taken from your manufacturer.

If you’re working with herringbone floors installed over slab, document your subfloor checks and test results. If problems appear later, your notes become the fastest path to a correct diagnosis instead of guesswork.

Verdict: Worth Doing Yourself—With These Limits

Herringbone floors are a good DIY project if you’re disciplined about layout, flatness checks, and measured cutting—but they’re a poor choice if your subfloor prep is uncertain or your installation method isn’t documented. As of 2026, the smartest approach is to proceed only when you can reliably keep the first “V” lines straight and maintain manufacturer-required clearances.

Herringbone patterns are less forgiving than straight layouts because alignment errors compound visually across the room.

Following ASTM test methods for slab moisture helps you avoid installing flooring outside the conditions the system expects.

Here’s the honest limit-setting: if your subfloor flatness doesn’t meet your flooring system’s tolerance, the herringbone look will magnify the issue, and callbacks are likely. Similarly, if your product requires a specific glue/nail schedule or moisture mitigation approach, treat that as non-negotiable.

Who should consider professional help:

– You can’t confidently measure/repair flatness to the spec.

– You’re unsure about moisture testing needs over concrete.

– Your herringbone flooring is glue-down and the instructions require precise adhesive spread/conditioning steps.

If you want, you can tighten this guidance to your situation with your exact setup:

Quick Checklist (Scan Before You Start)

The fastest way to “fail less” with herringbone floors is to check product type, moisture/flatness, and layout alignment before cutting.

Keeping the first “V” lines straight is the controlling variable for a clean finish in decorative herringbone installations.

– [ ] Confirm product type (click-lock, nail-down, glue-down) and follow its install method

– [ ] Measure and mark the center/reference lines for the herringbone start

– [ ] Dry-lay a few rows to verify spacing and wall outcomes

– [ ] Check subfloor flatness and address high/low spots

– [ ] Verify moisture/vapor barrier requirements from the flooring specs

– [ ] Keep the first “V” lines straight; realign periodically

– [ ] Leave expansion gaps and use proper transitions/trim

Sources

For herringbone floors, rely on the document trail that matches your exact system (click-lock, glue-down, or nail-down). Moisture, flatness, and installation steps are usually controlled by standards and manufacturer documentation rather than general advice.

– ASTM F2170 — Standard Test Method for Field Determination of Relative Humidity in Concrete Moisture Conditions

– ASTM F1869 — Standard Test Method for Measuring Moisture Vapor Emission Rate of Concrete Subfloor Using Anhydrous Calcium Chloride

– ASTM E96 — Standard Test Methods for Water Vapor Transmission of Materials

– ASTM D4263 — Standard Test Method for Indicating Moisture in Concrete by the Plastic Sheet Method

– National Wood Flooring Association (NWFA) — installation guidance for subfloor preparation/flatness and system requirements

Herringbone floors can look striking and “designer-level” when installed with planning discipline: prep for flatness, snap strong layout references, and lock in the first straight “V” lines before you cut wall sections. If you follow the manufacturer’s moisture, underlayment, and installation-method requirements, you’ll avoid the most common traps—drifted patterns, gaps, and peaks. If your subfloor is uncertain or your system demands precise glue/nail procedures, it’s worth pausing and getting professional help so the herringbone pattern stays crisp instead of turning into a costly rework.

Frequently Asked Questions

What’s the best subfloor preparation for herringbone floors?

For herringbone floor installation, start by ensuring the subfloor is clean, dry, and structurally sound. Check for flatness—most manufacturers require floors to be within a small tolerance over 6–10 feet—because any unevenness will telegraph through the pattern. Repair squeaks, remove high spots, and consider an appropriate underlayment or moisture barrier if you’re installing engineered wood or laminate over concrete.

How do I install a herringbone floor without ending up with an off-center pattern?

Dry-lay boards first and snap guidelines that account for the herringbone layout, so the ends fall symmetrically. Begin with a centerline, plan the first row so that cut pieces on both sides are roughly equal, and maintain consistent spacing for expansion gaps. Use a tape measure and chalk lines frequently as you go, and check alignment at least every few rows to prevent drift.

Which installation method is best for herringbone floors: nail-down, glue-down, or floating?

The best method depends on the type of herringbone floor you’re installing and your subfloor. Nail-down works well for solid hardwood on a wood subfloor, while glue-down is common for engineered wood and helps create a tight bond over certain substrates. Floating installations (often with click-lock engineered or laminate) require an underlayment designed for the floor system and still need careful expansion gap management around walls.

How do I cut and fit herringbone flooring around walls, vents, and doorways?

Use a template or cardboard mock-up for difficult contours, especially around baseboards, vents, and door casings. For tight wall gaps, measure the width of the board and account for the expansion gap before cutting; then test-fit a few pieces before committing. At doorways, plan transition strips early so the pattern stays visually consistent and the flooring movement is allowed where required.

Why do herringbone floors sometimes have gaps or buckling, and how can I prevent it?

Gaps or buckling usually come from inadequate acclimation, poor subfloor moisture conditions, or missing expansion space. Acclimate wood planks according to the manufacturer’s instructions, control indoor humidity, and verify moisture levels—especially over concrete slabs. Maintain the required perimeter expansion gap, use the correct adhesive (if glue-down), and avoid overworking the pattern once rows are locked in place.
